3 Way Diverter Damper Valves

Designed to divert high-temperature exhaust gases, these valves are generally installed on big bag filters or in waste heat recovery circuits, directing the gases to a heat exchanger, or alternatively, to the atmosphere through a chimney.

Diverter valves, also known as bypass valves, are essentially large three-way valves, with connections identical to those of the inlet and outlet ducts.

A sophisticated design and precise assembly, enabling the compensation of thermal deformations, along with high-temperature-resistant materials, are the most important features of our three-way valves. Efficient thermal insulation prevents heat loss and also protects the structure from the effects of high temperatures.

These diverter valves can also be equipped with an air sealing system to ensure optimal tightness.

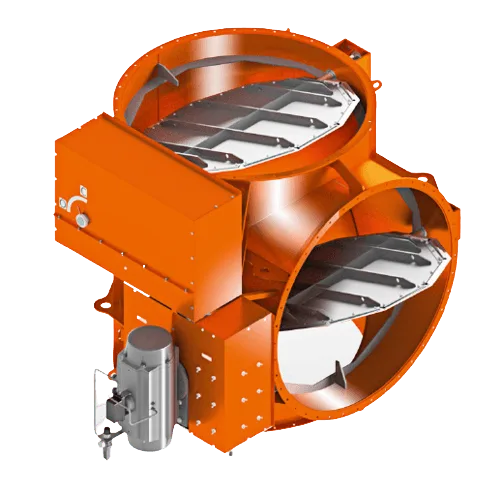

High-temperature three-way butterfly damper for industrial gas and heat recovery systems

Available Dimensions and Diameter Ranges

200 x 200 mm – 2 000 x 2 000 mm – 200 mm – 2000 mm (other sizes on r equest)

Connection Options and Applicable Standards

  • by flanges acc. to DIN 24154
  • by flanges acc. to PN6, PN10, PN16 (acc EN1092-1)
  • custom-made acc. to customer requirements (ANSI / GOST / OTHER)
  • welding-ends
  • rounded flanges for fiber compensator connection

Optimized Design for High Temperature and Pressure

  • design pressure < 0,5 bar
  • design pressure < 3,0 bar (with PED Directive)
  • design temperature -30°C do +750°C (max up t o 1100ºC)
  • other temperatures on r equest, possibility to use isolation, concrete or ceramic lining etc.

Actuator Connection and Automation Solutions

  • according to ISO 5211
  • custom-made acc. to customer requirements
  • adapted to work with customer actuators or on site actuators

Thermal and Anti-Corrosion Coating Options

  • Carbon steel elements: RAL 2008 as standard with epoxy primer up to 150°C above Thermal coating.
  • Stainless steel elements: acid treatment and passivation
  • other on request, all painting systems acc. to EN ISO 12944, sy stems C2 up t o C5 – industrial/marine

Applicable directives

  • Declaration of Conformity in compliance with Machinery Directive
  • CE Directive
  • Declaration of Conformity in compliance with EU Directive
  • ATEX Directive (all groups and zones) • PED Directive

Tightness class

  • possible class I, II and III ac c. to FCI 70-2 (ex ANSI B16.104)
  • possible geometrical tightness from 95% up to 100% (see da tasheet Materials & S ealings)
  • possible 100% tightness with sealing air systems

Extras

  • for diverters for gas distr ibutor installations (gas turbines, etc.) with sealing air sy stems and thermal lining inside (see datasheet for Tandem Diverters AFT-DVR-T)
  • depending on the tr ansportation possibilities, diverters are built in one piece or in parts to be mounted together on their allocated site
